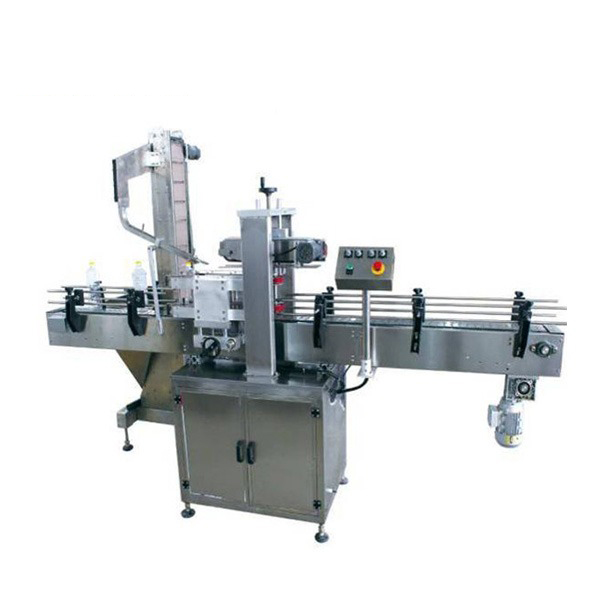

High Speed Automatic Linear Pressing Capping Machine

VK-PC automatic linear capping machine ,it is applicable for round ,square&flat bottles, it is used in many industries, such as cosmetic, food and pharmaceutical.

  • It adopt the mode of one motor controls one capping wheel, which can ensure the machine to work stably and keep consistent torque under long term working condition
  • The clamping belts can be adjusted separately, which allow the machine to suitable for capping bottles with various heights and shapes
  • If you choose the optional cap guiding system together with the machine ,it will then also fit for pump caps
  • The convenient construction adjustment system is equipped with precious ruler and counter
  • The Machine can be lifted and descended automatically by a motor

Description

For all kinds of plastic anti fake cover cover.Widely used in food, daily chemical, pharmaceutical and other industries.ely used in food, daily chemical, pharmaceutical and other industries.

Warranty: 1 Year
Packaging Type: Bottles
Packaging Material: Plastic, Wood
Type: Capping Machine
Condition: New
After-sales Service Provided: Free Spare Parts, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220v 50/60hz
Application: Beverage, Chemical, Commodity, Food, Medical
Weight: 850kg
Automatic Grade: Semi-Automatic
Certification: CE ISO
Driven Type: Pneumatic
Dimension(L*W*H): 2000*1100*1800MM
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points: pressing capping
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: United States
Showroom Location: United States
Product name: automatic linear pressing bottle cap machine
Machine Type: automatic
Material: Stainless Steel
Applied bottle range: 100ml-1000ml 1000ml-5000ml
Applied cap size: Dia:12-120mm
Capping rate: 99%
Color: Silver
Speed Control: Frequency Convertion
Single machine noise: <=70Db

Automatic press capping machine is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others.The machine has practicability in field of pharmaceutical, pesticide, chemical, foodstuff etc. It is real ideal equipment for bottle screw capping, also applied to seal aluminum cap, the ft proof cap, screw-thread cap, ROPP cap etc. It's built on a heavy duty, tig welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.

High Speed Automatic Linear Pressing Capping Machine

1ModelVK-PC
2Applied bottle range100ml-1000ml 1000ml-5000ml
3Applied cap sizeDia:12-120mm
4Yield of capping>99%
5Power Supply220V 50HZ
5Power Consumption<2KW
6Air Pressure0.4-0.6Mpa
7Speed ControlFrequency Conversion
8Single machine noise<=70Db
9Weight850kg
10Dimension (LxWxH)2000x1100x1800(mm)
11Production Capacity5000-7200 bottles/h

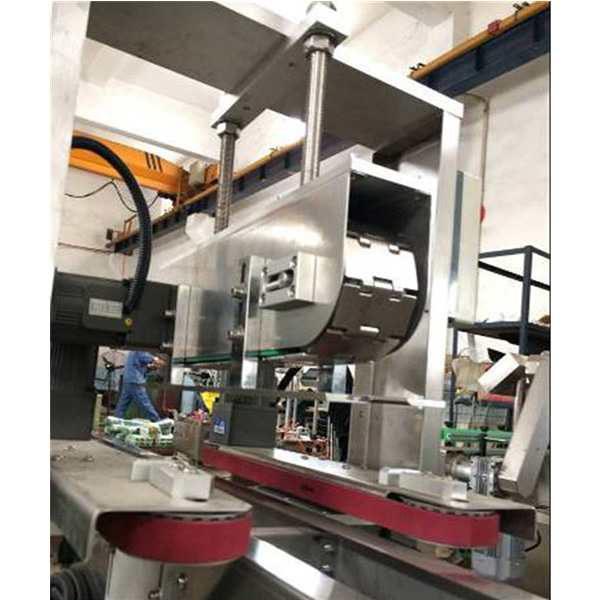

High Speed Automatic Linear Pressing Capping Machine Details

Main Features:

  • 1. This machine is made of stainless steel plate, it is reliable.
  • 2. The principle of synchronous chain plate cover can be used to cover all kinds of plastic anti fake cover without any scratch.
  • 3. The utility model has the advantages of novel structure, few faults, long service life and reliable operation.
  • 4. Stepless variable frequency motor speed control, suitable for a wide range of bottle type
