Automatic 4 Wheels Screw Capping Machine

The machine is control by touch screen, parameter can be set on touch screen very easily. It is very flexible for different sizes of round bottles, square bottles and flat bottles by adjustment. The main structure is made of durable 304 stainless steel. Capping time can be set to fit different caps and different levels of tightness.

VKPAK manufactures and supplies a range of capping and closing machines to suit a wide range of bottles, caps and closures. From simple hand held cap tightening tools through to fully automated cap sorting, placing and tightening systems, we have solutions for pre-threaded screw caps, ROPP caps, valve crimping and press-on caps. If you cannot find a suitable machine in our standard range, please contact us to discuss your individual requirements – our engineering team is on hand to discuss modifications or even bespoke machine design solutions.


The amount of torque a capping machine can apply to a cap is limited by the amount of grip that the capping machine can generate on the cap. The greater the grip, the greater the amount of torque the capping machine will be able to apply to the cap and the greater the torque repeatability you will be able to achieve on each cap.

Warranty: 1 Year, 12 Months
Packaging Type: Bottles
Packaging Material: Paper
Type: Capping Machine
Condition: New
After-sales Service Provided: Free Spare Parts, Field installation, commissioning and training, Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin: China
Brand Name: VKPAK
Voltage: 220V 50HZ
Application: Beverage, Chemical, Food, Medical, automatic screwing cap machine on the bottle
Weight: 450KG
Automatic Grade: Automatic
Certification: CE
Driven Type: Electric
Dimension(L*W*H): 1250*850*1750mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Product name: bottle capping machine
Model: VK-FC
Brand: VKPAK
Usage: use for capping or screwing bottles
Function: capping
Capping speed: 30-60bottle/min (subject to bottles and cap)
Material: 304/316 Stainless Steel

Technical Parameter

Capping Head1 Heads
Production Capacity12-40BPM depending on bottle sizes and shapes
Bottle HeightUp to 460MM
Cap DiameterUp to 70MM
Voltage/Power220VAC 50/60Hz 450W
Driven wayMotor with 4 wheels
InterfaceDALTA Touch Screen
Spare PartsCapping Wheels

Main Component List

4 Wheel Capping Machine

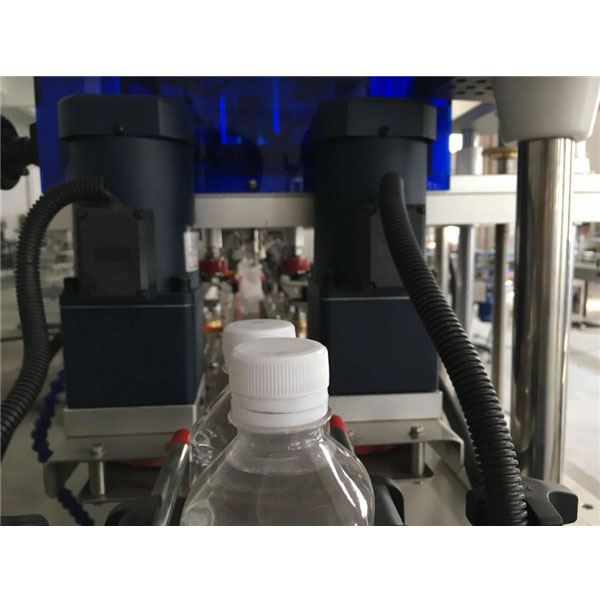

1Capping MotorJSCCGermany Technology
2ReducerJSCCGermany Technology
5Pneumatic CylinderAIRTACTAIWAN
7Press ControllerAIRTACTAIWAN
8Main Structure304SS

Detail Images

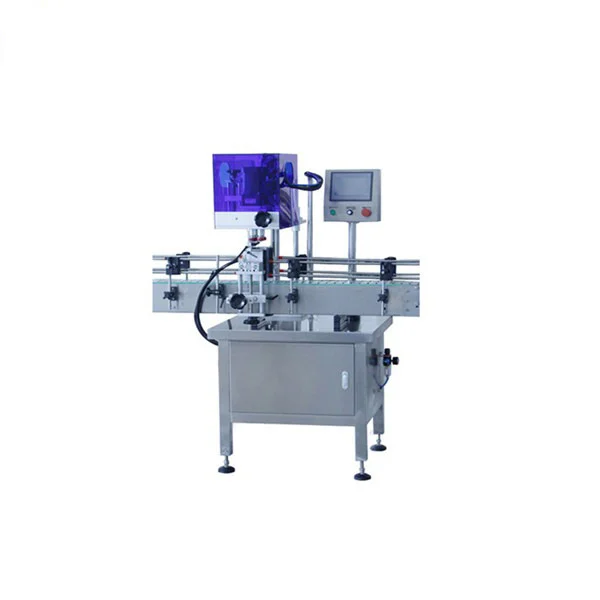

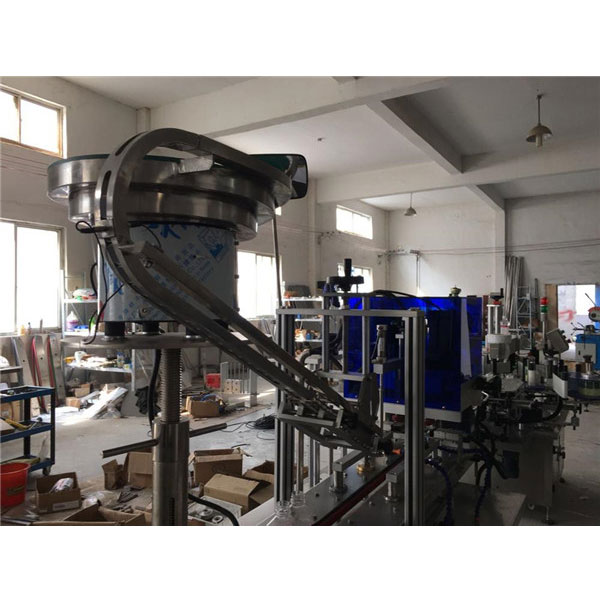

Automatic 4 Wheels Screw Capping Machine
Automatic 4 Wheels Screw Capping Machine

Main Features:

  • 1. Controlled by DALTA touch screen.
  • 2. Adjustable for different sizes and shapes of caps and bottles
  • 3. Bottle Clamp belt bottle in system is optional for upgrade capping speed, up to 40BPM
  • 4. Integrated digital control with Schneider PLC and high tech touch screen controls for easy operation.
  • 5. GMP standard stainless steel.

The VKPAK automatic cap tightener features a touchscreen display and easy to navigate menu. It displays real time production information, including the number of caps it has tightened and the production rate in bottles per minute. All program adjustments are at your fingertips to provide you with complete control over the capping machine. Capping programs can be saved and stored for future use.

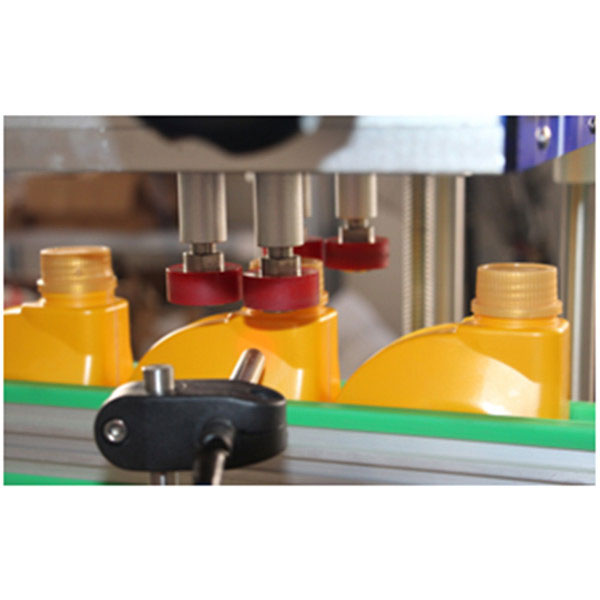

The capping heads installed on the VKPAK automatic chuck capping machine are the same capping heads installed on our VKPAK capping machines. These capping heads have a long and well-respected track record for delivering precision torque control and repeatable torque accuracy. The torque output is easily adjustable by rotating an external torque dial. We will custom build your capping head to match the torque requirements of the caps you will be tightening. Optional oil-free capping heads, stainless steel capping heads or exhaust capture capping heads are also available.

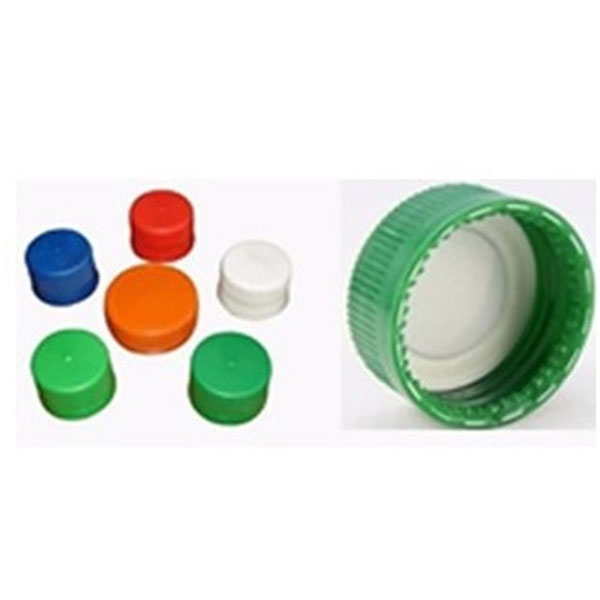

Automatic capping machines are used in the food and beverage industry, chemical industry, e-liquid industry, pharmaceutical industry, and countless others. The VKPAK applies plastic and metal threaded caps onto plastic, glass and metal containers. It applies a multitude of cap styles including dropper caps, yorker caps, chubby gorilla caps, unicorn caps, tamper evident caps, push-pull caps, sports caps and many more.
