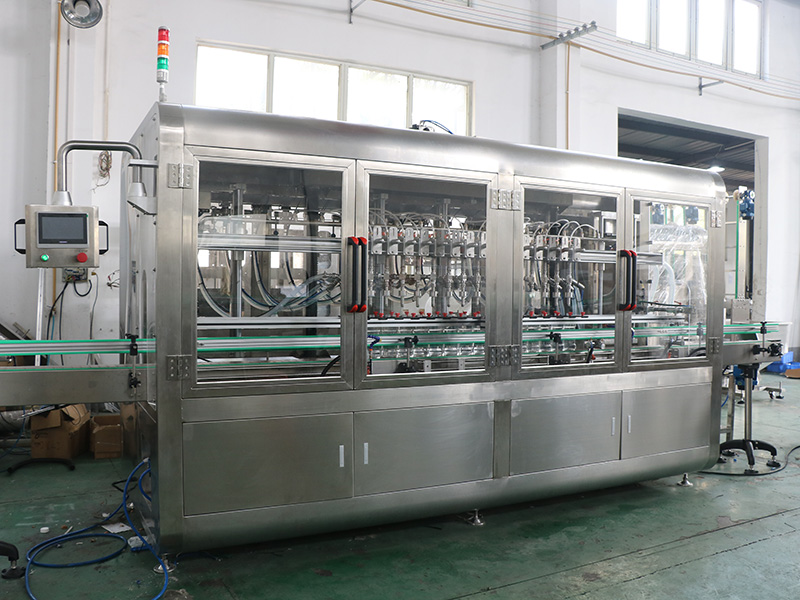

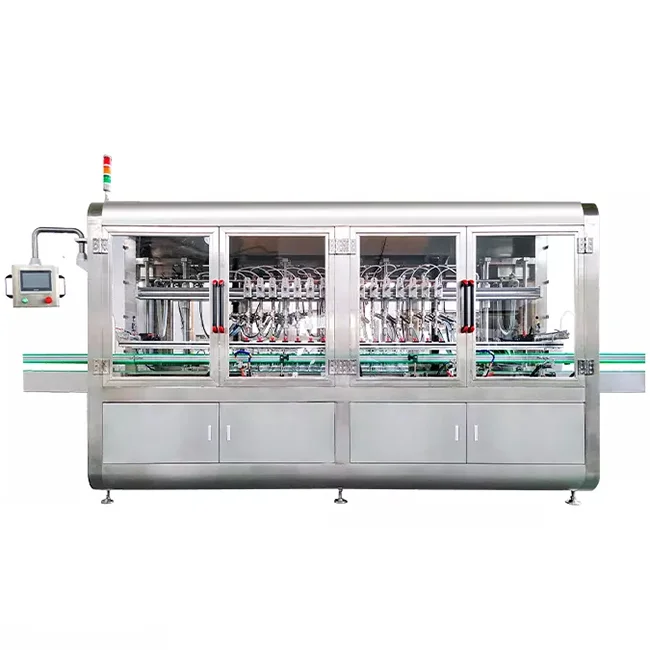

VK-OF Low Viscosity Automatic Overflow Filling Machine

How It Works:
The supply side (dark blue) of a two-part nozzle is used to pump product into the container. When the container fills up to the target fill height, the excess product and foam are forced out of the container (red arrows) via the return side to the original product source tank.

This type of filler is best suited for liquids with low to medium viscosity. liquids with solid particulates not exceeding 1/16″ can also be filled. Note that overflow fillers are the machine of choice in handling very foamy products at higher speeds.

Sauces, syrups, light gels and shampoos, foamy cleansers and chemicals, water and other non-carbonated aqueous beverages.

High performance, easy to clean, easy to operate, expandable at low cost. Offers the greatest flexibility at the lowest cost,

Quick Details

The VK-OF automatic servo motor driven filling machine is specially designed and manufactured by VKPAK , It is mostly apply for filling viscous liquid, such as cosmetic products, daily chemical products, and also for food products, such as vinegar filling machine, hand sanitizer filling machine.

Packaging Type: Bottles
Packaging Material: Wood
Type: Filling Machine
Condition: New
Place of Origin: Shanghai, China
Brand Name: VKPAK
Power: 2500W
Voltage: 220V 50HZ
Application: Beverage, Chemical, Food, Medical
Weight: 400KG
Automatic Grade: Automatic
Certification: ISO9001 CE GMP
Driven Type: Mechanical
Dimension(L*W*H): 3000mm*1300mm*1700mm
Model: VK-OF
Name: Automatic E-liquid Juice Filling Machine
Function: Liquid filling , Stopper and Capping machine
Filling volume:  100ml-5000ml
Control: PLC and Touch screen
suitable: High foam low viscosity liquid, vinegar, soy sauce, white wine, hand sanitizer etc.
Warranty: 12 Months
Material: Stainless Steel 304/316
Capacity: 500-4000 Bottles/h
Bottle type: plastic, glass bottle
After-sales Service Provided: Engineers available to service machinery overseas

VK-OF Low viscosity automatic overflow filler factory is extremely flexible filler, especial for liquid from thin viscous to high density , such as vinegar, soy sauce, white wine, hand sanitizer and so on. It is mostly used in the chemicals, foodstuff and pharmaceuticals industry.

The spare parts are proceeding by CNC machines with imported high quality stainless steel, all the main components are imported from Japan, German, Italy and America. Full automatic, controlled by PLC, operate by touch screen, easy operate and almost no need maintaining.

The Low viscosity automatic overflow filler factory is manufactured with a 304 stainless steel frame and is capable of supporting 2 to 16 filling nozzles PLC Controls, touch screen.

NameVK-OF Low Viscosity Automatic Overflow Filling Machine
Filling Nozzles2-16 nozzles, or customized
Applied bottle range30-100ml, 100-1000ml, 900ml-5000ml
Filling Accuracy≤ ±0.5%
Filling speed500-4200 bottles/hour, 24b/min per 4 filling nozzles 1L
Power supply220V Single phase 50HZ 380V Three phase 50HZ

Main Features

  • Man-machine English interface, intelligent contact screen, human design, easy operation.

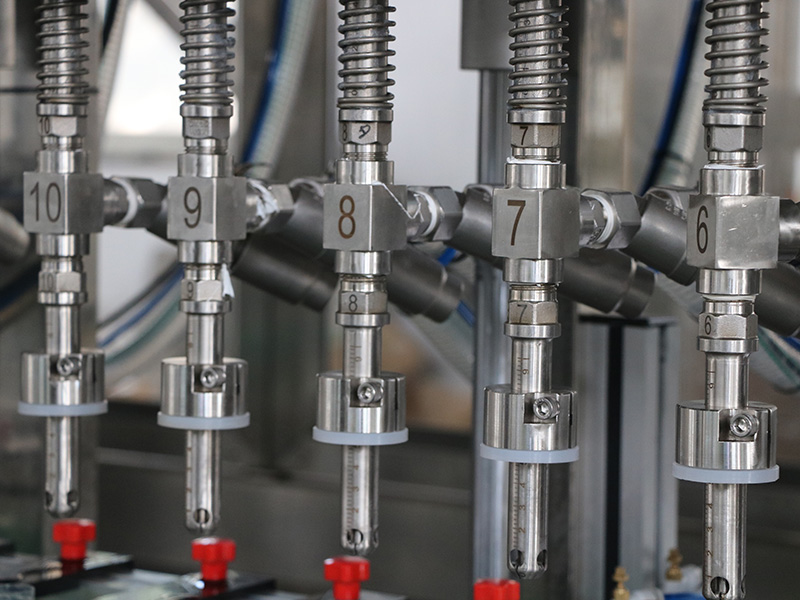

  • Special overflow filling nozzles, accuracy level filling.
  • Program logic controller (PLC), easy for changing size or modifying parameters.
  • Pneumatic elements are all imported, stability and reliability.
  • Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
  • Close positioning design, easy governing, suitable for packing of all sizes of bottles.
  • The whole machine is designed according to requirements of GMP.
  • The implementation of pump filling, overflow fillers to absorb foam & eliminate foam overllow & dripping.
  • Adopt low liquid hopper,convenient to clean disinfection.

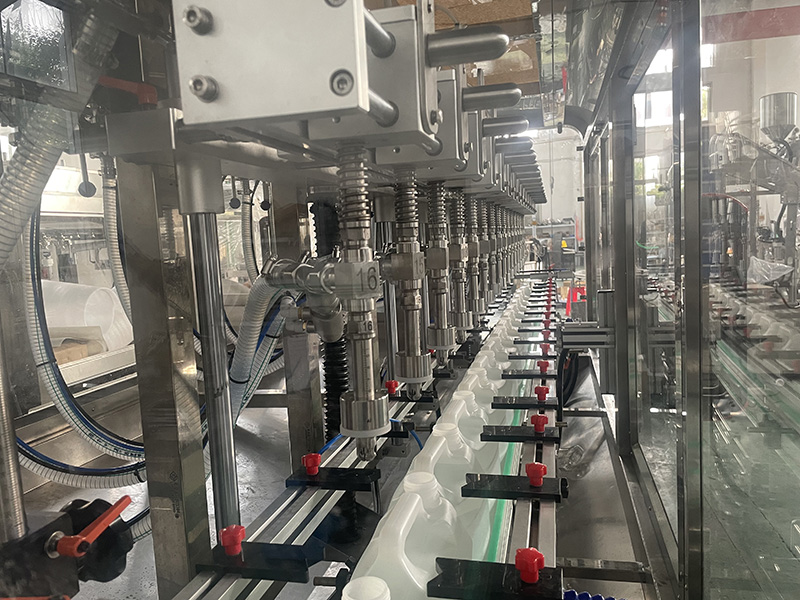

  • Neck index clamp device, accurate positioning bottle mouth before nozzles go inte the bottles.
  • Convenient to adjust volume, easy to operate,change different bottle in a short time.
  • Machine desiagned and manufactured accordance to GMP regulation.

Filling nozzlesVKPAK
Conveyor beltVKPAK
Conveyor motorTaiwan YN
PLCJapan Mitsubishi
Touch screenSchneider
ContactorFrench Schneider
RelayJapan Omron
Water/Oil regulatorTaiwan Airtac
CylinderTaiwan Airtac
Port pilot solenoid valveTaiwan Airtac
Photo sensorKorea Autonics
Sanitary Centrifugal pumpChina origin
