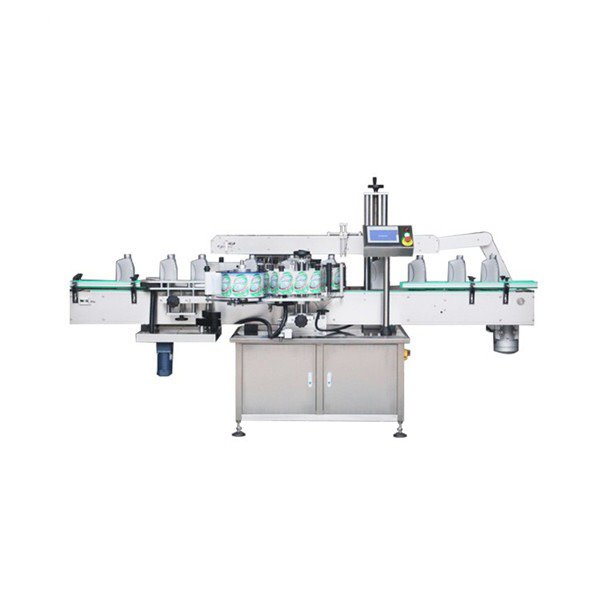

Automatic Double Sided Labeling Machine

Double sides bottle labeling machine can paste the two sticker labels on the bottle and contorl by PLC and touch screen

VK-DSL Double sides labeling machine is designed on the base of two sides labeling machine, to meet some of customer to meet the requirements of label two sides and round bottles. mostly applicable for square, flat bottles, round containers for medicine, daily chemical, food cultural supplies, Electronic.

Double sidel labeling machine is the Multi-Function labeling machine , suit for Flat , Oval ,Square ,Round bottle. this machine is control by the servo motor drive in order to assure perfect label exact.


  • Automatic double Sides oval bottle labelling machine plus round bottle
  • Connect the filling and Capping line with high speed
  • Servo motor and PLC can assure the label exact
  • Customer is easy to adjuse the machine when changing the differnt bottle size, no need to change any parts

Warranty: 1 Year
Packaging Type: Bottles
Packaging Material: Paper
Type: Labeling Machine, Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V 50/60HZ
Application: Beverage, Chemical, Food, Medical
Weight: 600kg
Automatic Grade: Automatic
Certification: ISO9001
Driven Type: Mechanical
Dimension(L*W*H): 2800mm*1200mm*1650mm
Function: Front and back bottle labeling machine
Labeling speed: 20-100bottle /min
Motor: servo motor
PLC: Semiens
Usage: Adhesive Labels Bottles
Model: VK-DSL
Material: 304/316 Stainless Steel
Advantage: High Speed

Technical Parameter

NameHigh Speed Double Sides Labeling Machine for Bottles
Labeling Speed60-350pcs/min(Depending on label length and bottle thickness)
Height of Object30-350mm
Thickness of Object20-120mm
Height of Label15-140mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter420mm
Accuracy of Labeling±1mm
Power Supply220V 50/60HZ 3.5KW Single-phase
Gas Consumption of Printer5Kg/cm^2

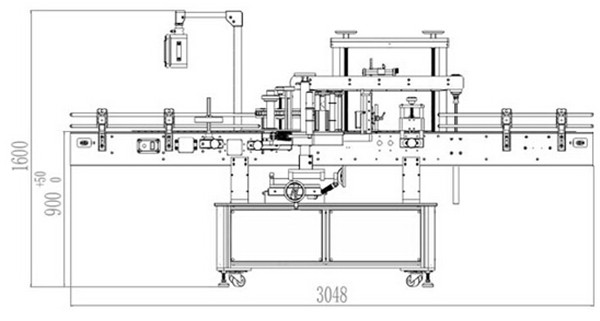

Size of Labeling Machine2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine450Kg

The whole double sided labeling machine adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery, it adopts suit type assembly. The maintenance and servicing can be completed without professionals. When it is necessary to replace the product, just make some simple adjustments, it can be immediately put online for production.

  • The whole machine is made of S304 stainless steel and high class aluminum alloy using anodizing treatment.
  • The labeling head is driven by advanced stepping motor Imported from Japan.
  • All electric eyes are Japanese or German advanced photoelectric eyes.
  • PLC large-scale human machine interface control, allocated with 60 groups of memory units.

The machine labeling equipment automatic , provided with such mechanism as bottle Piloting, bottle dispensing and labeling, and counting etc,is most suitable for use of small amount of various products or for operation of single machine and single person.

The labeling position, height and angle can be adjusted. It can be connected by conveying belt with the production line.

Detail Images

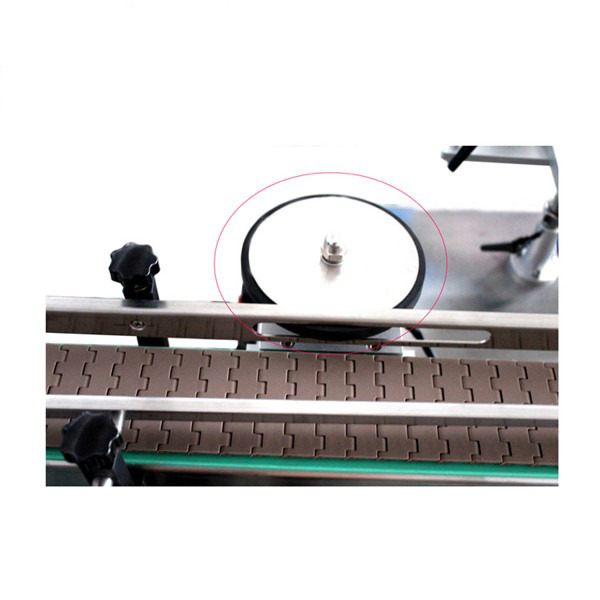

Automatic Double Sided Labeling Machine
Automatic Double Sided Labeling Machine
Automatic Double Sided Labeling Machine
Automatic Double Sided Labeling Machine
Automatic Double Sided Labeling Machine

Main Features:

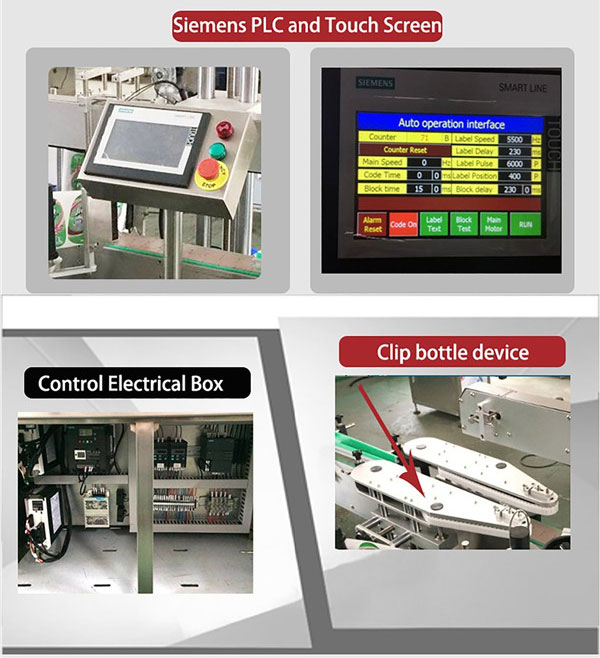

  • PLC and Touch Screen CONTROL, Automatically check the length of labels
  • Equipped with warning device of insufficient labels, broken labels

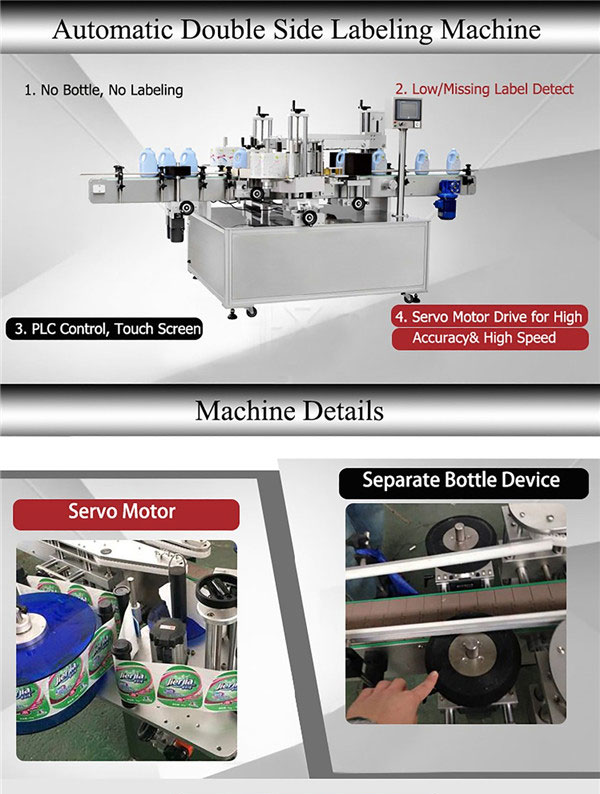

  • No bottle, no labeling
  • Automatic warning Without labels

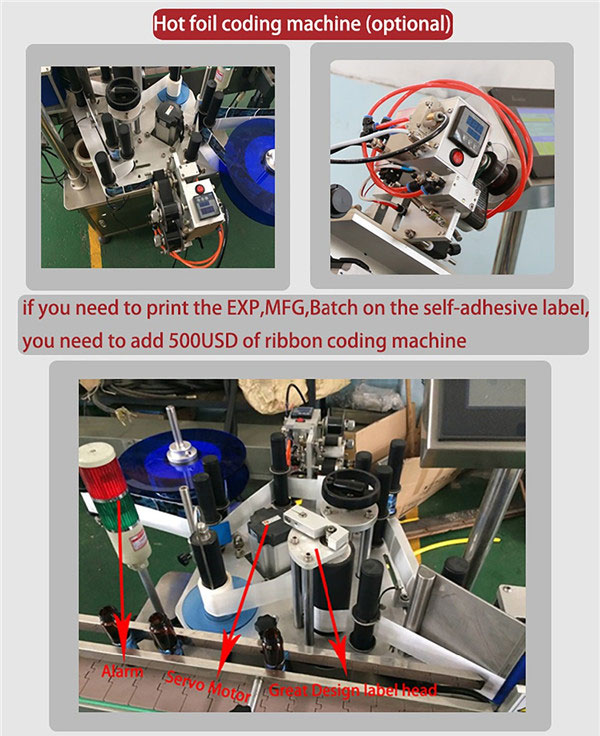

  • No Ribbon, automatic warning
  • Servo motor control, stable labeling.
  • Perfect Label exact

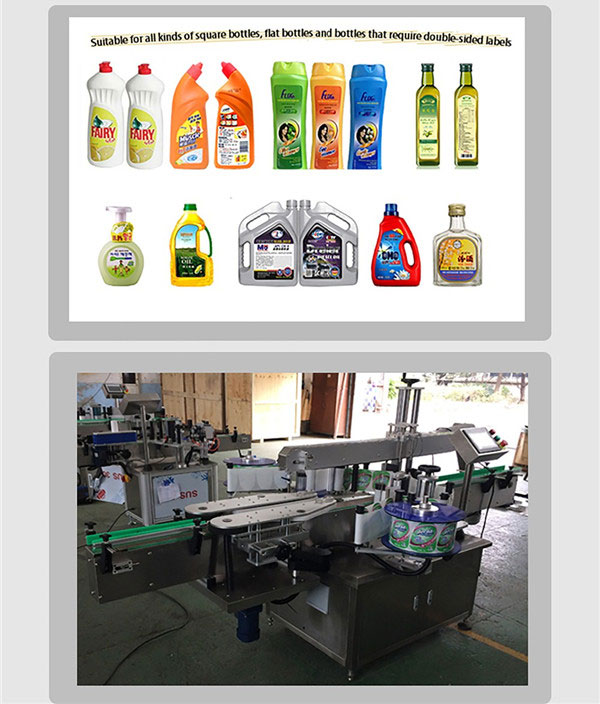

  • Suitable for any kinds bottle , Cans, Jars
  • Customer can adjust the label angle according to the label position

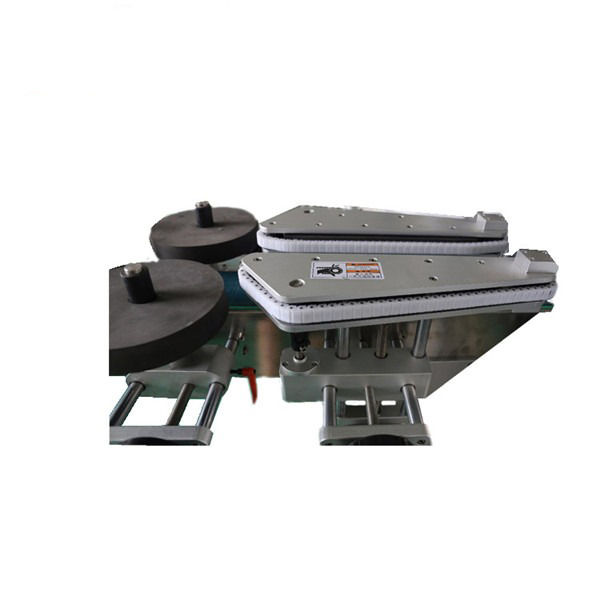

Our manufacturing team is always ready to attend to any urgent specific need of Spares, service and maintenance or after sales services from our esteemed clients. Two Head (front and back) Label Applicator Suitable for applying Front, Back or Side Labels on Flat/Oval/Square/Round shape containers with output Up to 350 Labels per minute depending on products Shape/Size and label size. Automatic Product Alignment system synchronised with top holding belt system. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. Machine also available with Optional Wrap-Round System makes it more flexible to use for Applying Single Side Label on Flat Bottles or Applying Wrap Round Label on Round Products. Our labeller machine suitable for many different kind for Absinthe , Bourbon / American Whiskey , Brandy / Cognac ,Cachaça , Canadian Whisky , Gin ,Irish , Whiskey, Liqueurs ,Brandy ,Mezcal ,Pisco ,Rum ,Rye Whiskey ,Scotch ,Tequila ,Vermouth / Aperitif Wine ,Vodka , Whiskey,Russian vodka,iquor Brands & Spirits. Absinthe. Apéritif Wine. Baijiu. Bourbon & American Whiskey. Brandy. Cognac. Gin. Liqueur Pet and Glass bottle front and back labeling machine
