Automatic Self Adhesive Bottle Labeling Machine

Automatic Self Adhesive Bottle Labeling Machine is suitable for many variety of bottle labeling. When labeling, the bottle will automatically rotate to allow the labeling device to the apply pressure for labeling.

Automatic Self Adhesive Bottle Labeling Machine is suitable for many variety of bottle labeling. When labeling, the bottle will automatically rotate to allow the labeling device to the apply pressure for labeling.

Suitable for medicine, food, beverage, and chemical industries. Can be used for plastic, glass, metal and other round containers/bottles. With its innovative design, its operation is so simple that even a primitive man can use.


Basically, a labelling machine is used to stick labels automatically on products, containers, bottles etc. Manually labelling can be time consuming and unprofessional way of packing a product. A long time ago, when the labelling machines were not invented, the labelling was done manually on bottles, jars, containers etc., which was a lengthy as well as time consuming process. But now, labelling machines have become a blessing for the industries. When it comes to bulk packaging of products, there is no other way of labelling the products except using a labelling machine. So, labelling machine is used in packaging process of many industries like pharmaceuticals, cosmetics, FMCG, food and beverages etc.

Warranty: 1 Year
Packaging Type: Bottles
Packaging Material: Paper
Type: Labeling Machine, Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V 50/60HZ
Application: Beverage, Chemical, Food, Medical
Weight: 200kg
Automatic Grade: Automatic
Certification: ISO9001
Driven Type: Mechanical
Dimension(L*W*H): 1800mm*1000mm*1300mm
Function: sticker label on the bottle
Labeling speed: 20-100bottle /min
Motor: servo motor
Material: Stainless Steel
warranty: 1 year
labeling accuracy: 1mm
Service: 24/7 Technical Support
packing: Long Distance Wooden Case

Technical Parameter

Model / technical parametersVK-DSL
Labeling speed (pcs/min)40-100(relate to material and label size)
Labeling accuracy(mm)±1.0mm(material and label sizes are not counted in)
Label size(mm)(L)20-280mm (H)30-144mm
Material size (mm) Φ20-φ100mm  (H)40-200mm
Roll inside(mm)φ76mm
Roll outer diameter(mm)Max:Φ350mm
Machine size (mm)(L)2000*(W)850*(H)1450(mm)
Power supplyAC220V 50Hz/60Hz  1500W

  • Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.
  • Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.
  • High precision-Accuracy from +-0.5-1mm. wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.
  • High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
  • Europe standard-The labeling machine is made according to CE standard, Taiwan technology.

Detail Images

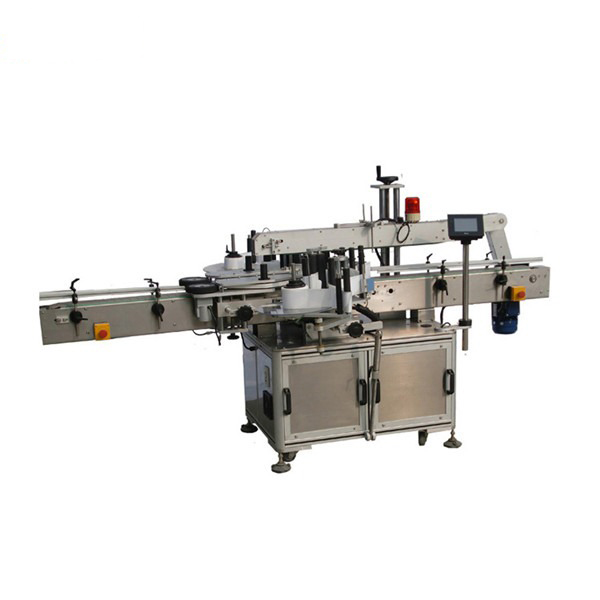

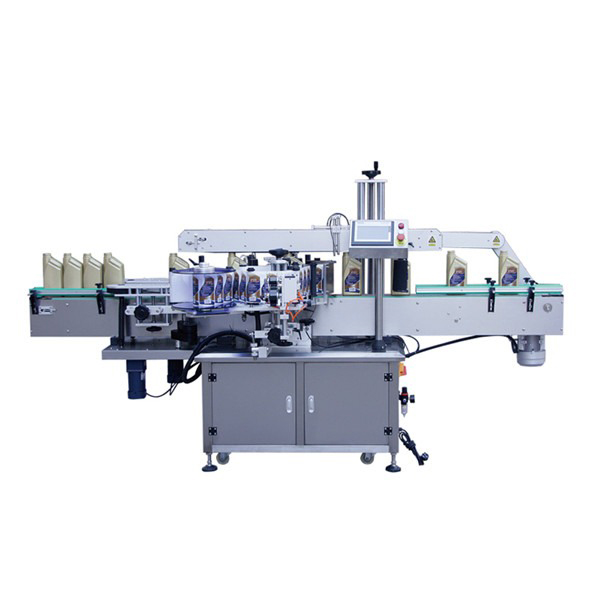

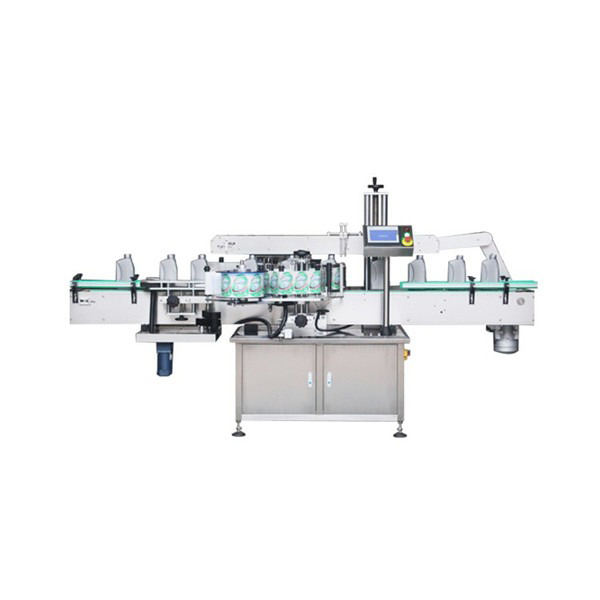

Automatic Self Adhesive Bottle Labeling Machine

Working process of bottles labeling machine

  • Manually put bottles on conveyor or using a automatic botte turntable
    And the bottles will be separated by bottle separator to keep the each bottle distance for guarantee the working stable
  • All the action are control by PLC, Automatic sense the bottle and labels, automatic apply the labels on the two sides of the bottles. And machine with function, no bottle no labeling, automatic warning if no label or lack of labels
  • After apply the labels on bottles, the label paste device will paste the labels to fasten the label on bottles.
  • Then bottle go to next processing

Main Features:

  • Adopts stepping servo motor, PLC control system, color touch screen display.
  • Adopt Japan photo sensor to detect and check the length of labels automatically
  • Equipped with warning device of insufficient labels, broken labels and no chroma tapes.
  • Accurate label position, fast speed and high labeling precision.
  • Automatic detection, no container no labeling,.
  • Machine body is made by stainless steel, completely meets GMP requirements
  • It can install with coding/inkjet printer (optional).

The self adhesive sticker labeling machine is fully automated, vertical, and linear. This multipack model has a number of user friendly features. It is the most appropriate equipment for applying front, back, or side labels on flat, oval, square, and round shaped containers. This robust machine can provide a maximum output of 100 labels in one minute; depending on the shape and size of the products, and the label size. It also incorporates an automatic and synchronized system for aligning the product with the top holding belt system. Another excellent element of this equipment is the advanced micro processor controlled label dispensing system; with the latest sensing system for labels and products. This multi-purpose, high speed, labeling machine is efficient, precise, and long lasting. It is built to fulfill the diverse requirements of the users in the modern packaging lines. This simple to operate and easy to adjust machine needs minimum tools and change of parts. It can be specially designed with a feed worm and pocket system to ensure proper alignment of the bottles on the conveyor for accurate labeling. This model even includes an exclusive single point synchronized speed control system. Further, the inherent and preset label length detection system enables to avoid the manual feeding and storing of the label length data in the memory and retrieve it every time to change the label size and restart the equipment. Subsequently it saves your time, prevents machine down time, and enhances the productivity. It is also available with an optional safety cabinet made from tough glass or acrylic. This equipment can be especially designed to apply single side labels on flat bottles and body, wrap round labels on round shaped bottles. Moreover it also includes all the essential characteristics of a standard model as per the current market.
