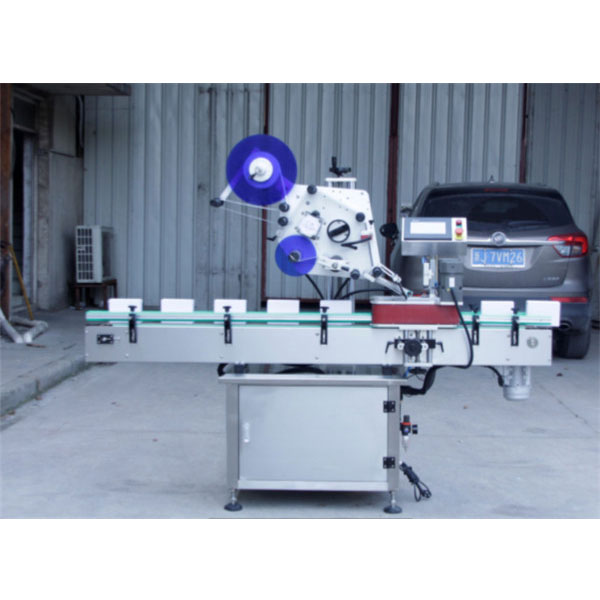

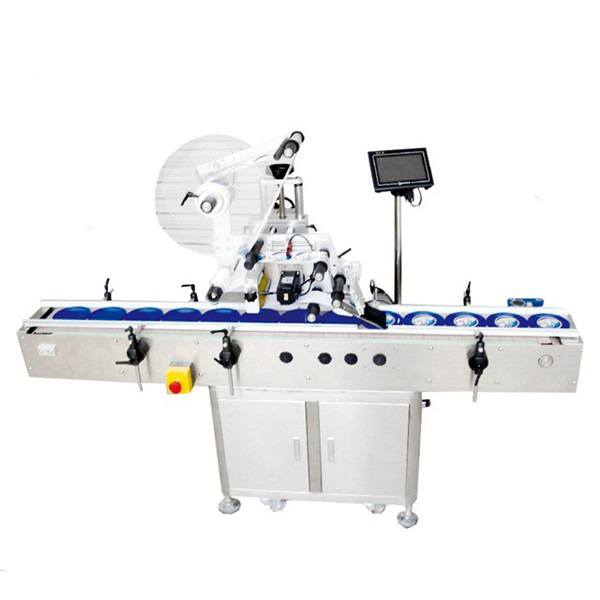

Automatic Bag Sticker Labeling Machine
Bag sticker labeling machine is produced by VKPAK it is label the bag, pouch, carton , card by sticker label.
Pouch Labeling Machine is is suitable for Doypack popuch, Bag ,sachet,Card labeling machine. this machine can seperate the empty bag automatic one by one.
- The label head is on the top of conveyor
- Electrical parts is made in Japan or Europe
- Without Bag, without labeling
- Suitable for the sticker/adheisve label
- Label on the carton , pouch, Card , bag Can and kinds of surface container
Description
The labeling Machine is suitable for all kinds of objects with plane surface, such as boxes, bottles, cans, etc. Widely used in cosmetic, drinks, chemical, medical, food industry, stationery CD, various oil, etc, which can highly improve productivity and product quality. top labeling machine plansurface.
Packaging Type: Bottles
Packaging Material: Paper
Type: Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V 50/60HZ
Application: Beverage, Chemical, Food, Medical
Weight: 200kg
Certification: ISO9001
Driven Type: Electric
Dimension(L*W*H): 1800mm*1000mm*1300mm
Product name: automatic plastic bag sticker plane labelling machine
Function: sticker label on the bottle
Labeling speed: 20-100bottle /min
Motor: servo motor
Machine name: topside container labeling machine
Material: Stainless Steel
warranty: 1 year
labeling accuracy: 1mm
Service: 24/7 Technical Support

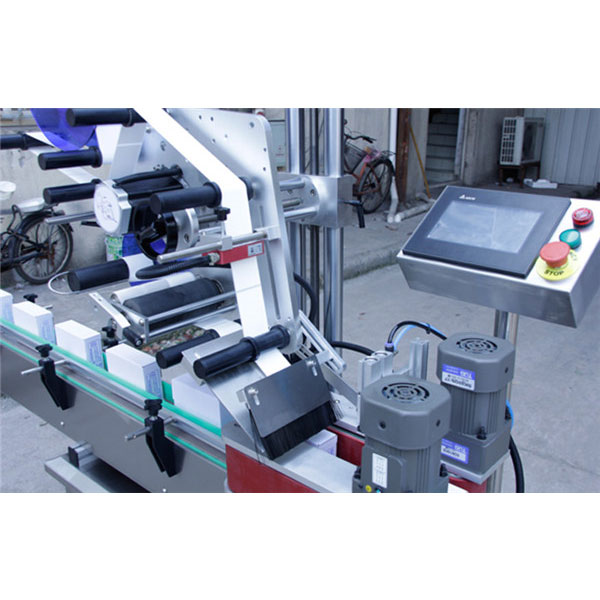

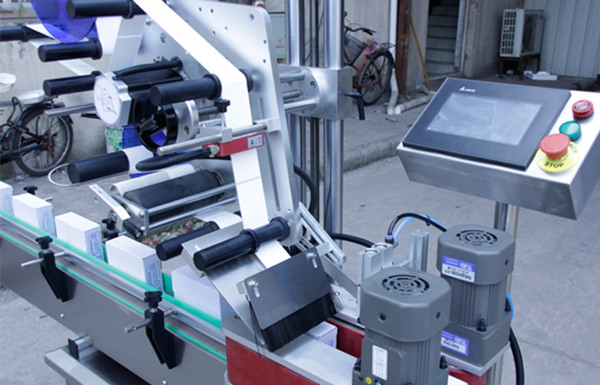

Detail Images
Advantages:
- Operation: PLC control system makes labeling machine easy to operate
- Material: Labeling machine’s main body is made of SUS304 stainless steel
- Configuration: Our labeling machines adopt Japan motor driving and photo sensor and Taiwan control system
- Flexibility: Client can chose to add printer and code machine; can
connect with conveyer
Technical Parameter
| Name | Bag Sticker Labeling Machine |
| Labeling Speed | 20-200pcs/min(Depending on label length and bottle thickness) |
| Height of Object | 30-200mm |
| Thickness of Object | 20-200mm |
| Height of Label | 15-110mm |
| Length of Label | 25-300mm |
| Label Roller Inside Diameter | 76mm |
| Label Roller Outside Diameter | 350mm |
| Accuracy of Labeling | ±0.8mm |
| Power Supply | 220V 50/60HZ 0.75KW |
| Gas Consumption of Printer | 5Kg/cm^2 (if add coding machine) |
| Size of Labeling Machine | 1600(L)×550(W)×1600(H)mm |
| Weight of Labeling Machine | 250Kg |
Applicable Label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc;
Applicable products: requirements in flat or curved, circular surface, concave, convex, or other surface attached label products;
Industry: Widely used in cosmetics, food, toys, cosmetics, electronics, pharmaceutical and other industries;
Application: Shampoo flat bottle labeling, packaging labeling, bottle caps, plastic shell labeling and so on.
Main Features:

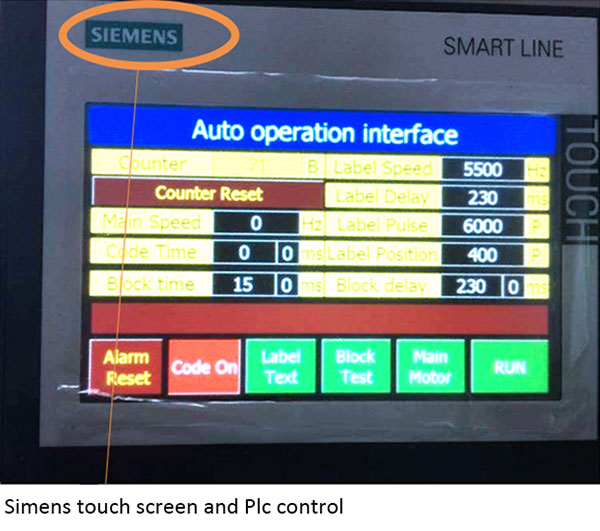

- PLC and Touch control system
- Main body of machine is 304SS
- We adopt the servo motor and sensor (Made in Japan) in order to assure great label exact
- Fixing coding machine to print the date information on label
- No object , No Labelling
- The bag feeding device can seperate the bag automatic
Almost maintenance free, accurate labeling, stainless steel structure, wheels & fixed stand available.

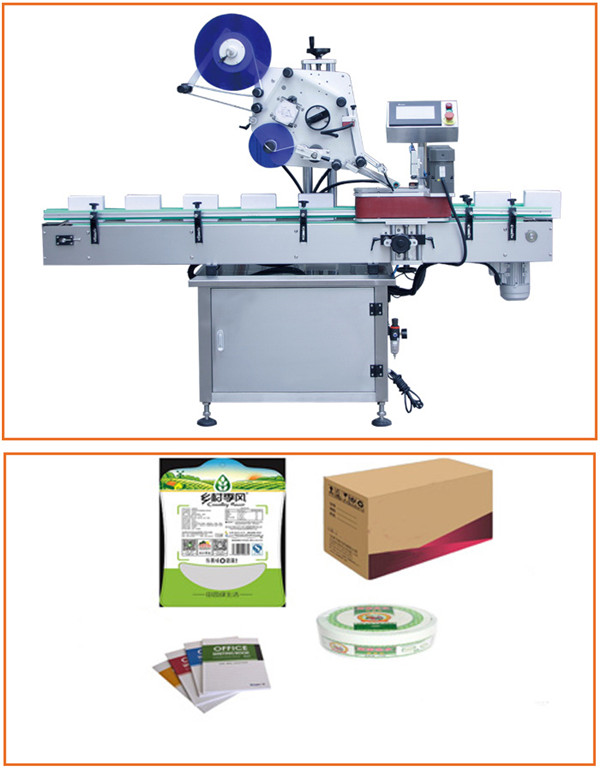

- The labeling machine is mainly used to stick labels on bag, paper box, card, tag, magazine, test paper, cd, etc light and thin products.
- High labeling precision, work stable, neat, no wrinkle, no bubble.
- No product no labeling, has account function.
- Adjustable in certain scope if product and label size is different.
- Whole bag labeller is easy to move. can be matched with ribbon code printer or inject printer.
- Can work alone or join other packaging machine line.
- Label Applicable: Adhensive paper/transparent label in roll.
