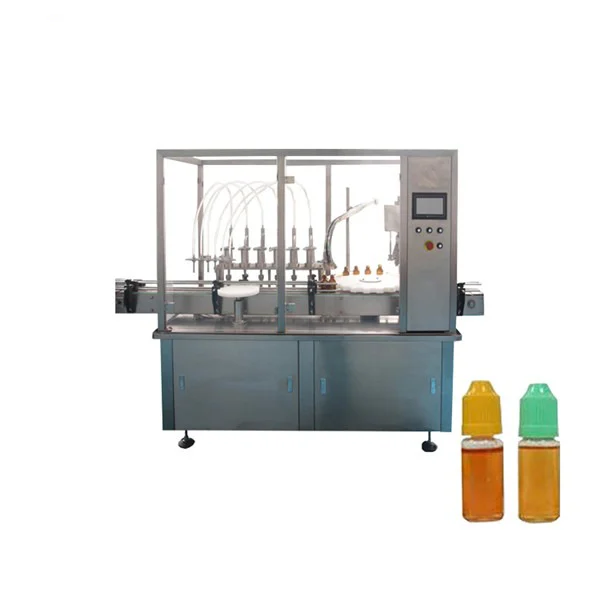

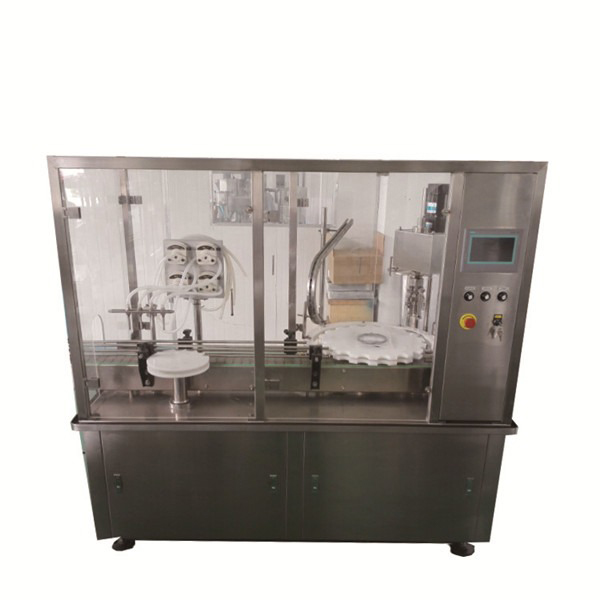

VK-MFC Automatic E-liquid Bottle Filling Machine

E-liquid filling machines suitable for e-cigarette liquids, penicillin products and eye drop products.

VKPAK filling / inserting / capping monoblock machine with unscrambler is suitable for low to medium viscosity liquids, with accurate peristaltic and piston pumps filling performance. This machine features double pumps/nozzles to achieve a high production speed. Fill more, faster.

Its user-friendly design gives operators ease of operation, and is low maintenance for more uptime. You can choose between 2 or 4 pumps/nozzles to be fitted on your machine.

The Nib and Caps feed through vibrating bowls, and the capping mechanism uses a Permanent Magnet Hysterisis Clutch and Brake to easily control the capping torque. Contact parts are made from high quality 316 stainless steel.

Accurate bottle placements is assured by a servo-controlled star wheel to ensure perfect posiitioning for filling inserting and capping.

Production capacity30-40 bottles/minute
Filling nozzle2 nozzles
Filling accuracy±1%
Press capping nozzles1 nozzles
Capping rate99% or more (depending on the characteristics of plug appropriate adjustment)
Speed controlfrequency control
Bottle sizeMore than 10 mm
The power supply380 V 50 Hz
Power2 kw
Air supply0.3~04kfg/cm2
Gas consumption10~15m3/h
Overall dimensions3000×1300×1700 mm

Quick Details

Packaging Type: Bags, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material: Wood
Type: Filling Machine
Condition: New
Place of Origin: Shanghai, China
Brand Name: VKPAK
Power: 2000W
Voltage: 220V 50HZ
Application: Beverage, Chemical, Food, Medical
Weight: 700KG
Automatic Grade: Automatic
Certification: ISO9001 CE GMP
Driven Type: Mechanical
Dimension(L*W*H): 3000mm*1300mm*1700mm
Model: VK-MFC
Name: Automatic E-liquid Juice Filling Machine
Function: Liquid filling , Stopper and Capping machine
Filling volume: 3ml-30ml and 30ml-100ml and 100ml-500ml
Control: PLC and Touch screen
suitable: Vial , perfurm , oral liquid , E-liquid .eye-drop
Warranty: 12 Months
Material: Stainless Steel 304/316
Capacity: 2000-4000 Bottles /h
Bottle type: Plastic,glass bottle
After-sales Service Provided: Engineers available to service machinery overseas

VK-MFC Automatic E-liquid Bottle Filling Machine is applicable to the pharmaceutical industry in the 2-100 ml bottle of liquid filling and sealing packing process, high precision piston pump (or peristaltic pump) filling, measuring accurate, adjustable, convenient maintenance, easy operation, no bottle no filling, no bottle no plug, not plug cover function.

Ready enough bottles, plug in, cover, and liquid medicine, plug and cover should be full of vibration hopper rail and is located in the inside and outside cover location.

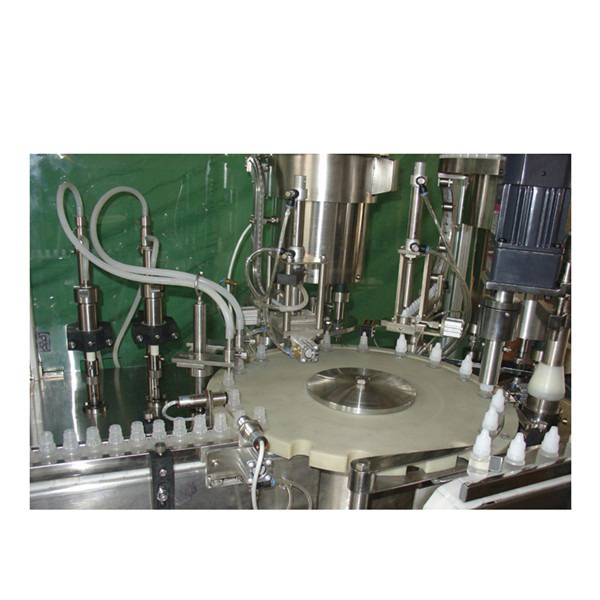

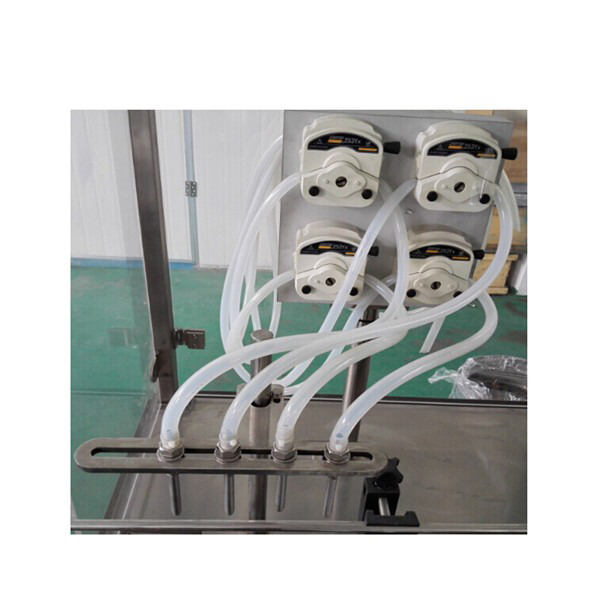

Filling: Bottle by oscillation tidy up the bottle opener for positioning disk thick, by positioning disk again intermittent drive to filling, stoppering, cover, screw cap.Solution by peristaltic pump suction by silicone pipe, at the filling station again by the needle can be moved up and down automatically filling liquid in the bottle.The needle every move up and down, to complete a filling.

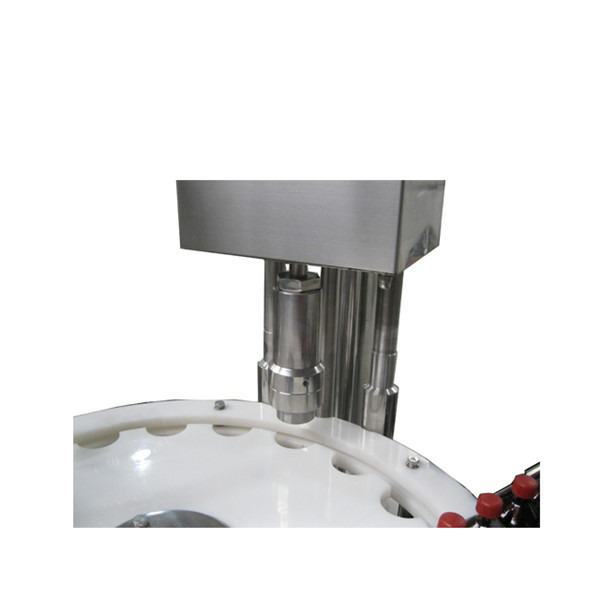

Capping: Add good plug inside the bottle again by positioning disc sent to the affix, screw cap, affix a similar principle and urinating in principle, is done by the cylinder, covering various size by complete, constantly rotating screw LIDS below and overall do up and down, when the bottle stops right, decline of spin trapping modesty lid screw cover finish.Screw cap body adopts the design of constant torque, according to the bottle cap and bottle thread with torsion, to adjust the firmness of the screw cap after puttingin place can automatic sliding, achieve the goal of not wounded cover not bottles.

NP-MFC Automatic E-liquid Bottle Filling Machine Details
