VK-GF Automatic Gravity Chemical Bottle Filling Machine
How It Works:

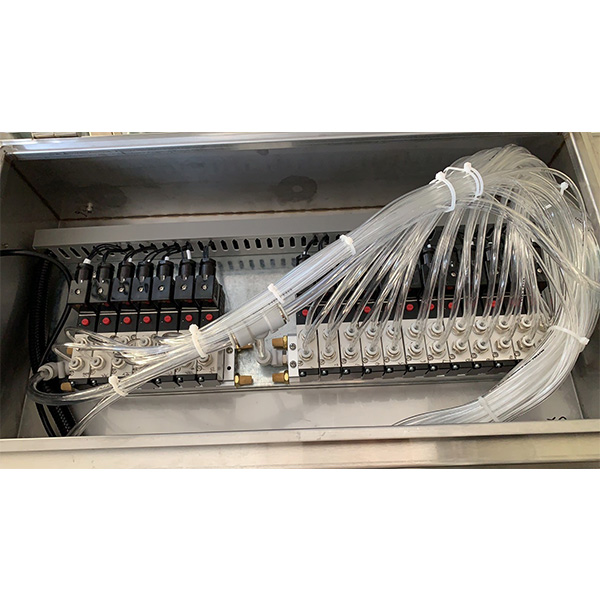

The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler’s master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.
This type of filler is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation. This machine is also suited for applications where recirculation of the liquid in the fluid path is not desireable. Although this type of filler is used predominantly on products that do not foam, foam may be limited and controlled by subsurface/bottom-up-fill capability.
Water, solvents, alcohol, specialty chemicals, paint, inks, corrosive chemicals i.e. acids and bleach.
This is the most economical type of filling machine for a limited range of applications. It is especially well suited for corrosive chemicals.
Automatic Gravity Chemical Bottle Filling Machine is extremely flexible filler, is capable of filling accurately and rapidly any viscosity such as Shampoo,lotion,hair oil, cooking oil, honey, sauce, hand washing,and so on.
Product delivery from your bulk tank to the pistons can be configured with a buffer tank utilizing a level-sensing float, a manifold with direct draw, or recirculation methods.
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood
Type: Filling Machine
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Automatic Grade: Automatic
Driven Type: Mechanical
Applicable Industries: Building Material Shops, Manufacturing Plant
Name: automatic gravity chemical filling machine
Contact Material: 316SS
Control: Servo Motor control filling volume
Processing Types: Filling liquid filling into bottle
Filling volume: 1000ml-5000ml and 100ml-1000ml

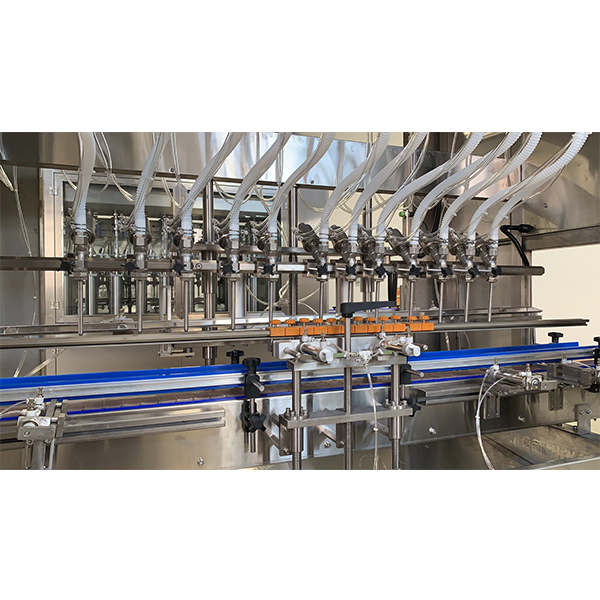

VKPAK's Gravity Fillers provide volumetric time based filling solutions. An elevated tank on this bottle filler holds product until containers are in place under the fill nozzles. The fill tubes or nozzles then open and release product for a pre-set amount of time. Each fill head can be individually timed to allow for an accurate volumetric fill for each bottle. Gravity filling machines, both automatic and semi-automatic liquid fillers, are best suited for free-flowing, low viscosity products like water and ink. Special nozzles for gravity fillers can also be used help prevent drips and control foaming with some products.
Gravity filling machines are best for liquids that do not change viscosity (thickness of the liquid) when the temperature of the product changes. Gravity fillers use simple time-based controls to fill low viscosity liquid products.

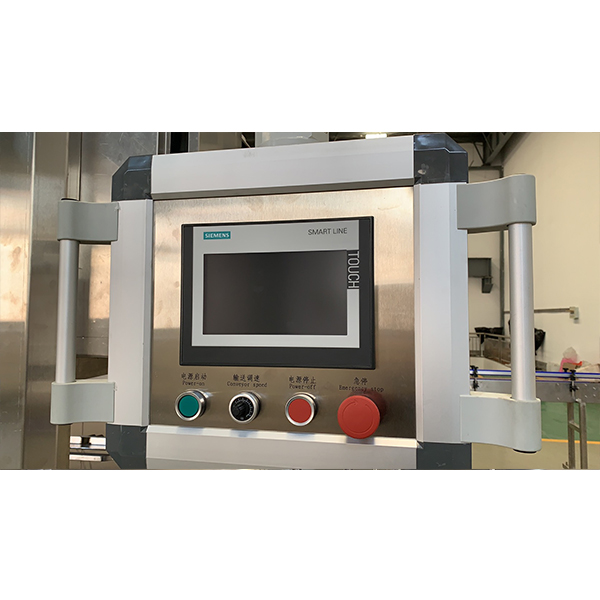

The Automatic Gravity Filler is ideal for filling thin liquids with consistent viscosity. Volumetric time gravity filling method produces repeatable and accurate fill volumes. The Gravity Filler is manufactured with a heavy duty 304 stainless steel, tig-welded tube frame and reservoir. It also features user friendly PLC controls. This filler is capable of accommodating up to 16 heads, and utilizes an automatic product level sensing float system for filling efficiency. Many more features and options are available for even more versatility and customization. Gravity Fillers are utilized by the food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various filling projects. The Automatic Gravity Filler can be built to suit a wide variety of applications including sanitary, hazardous, flammable, and corrosive products and environments.
|Filling Volume||100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml|
|Filling Material||Shampoo,Lotion,Cooking oil,Lube oil, Degergent liquid,Hair oil, Honey, Sauce,and so on|
|Filling Precision||Less Than 0.5%|
|Power supply||220V Single phase 50HZ 380V Three phase 50HZ|
- Bottle Filling machine is adjustable for many different types of bottles
- Easy to maintain, no special tools are required.

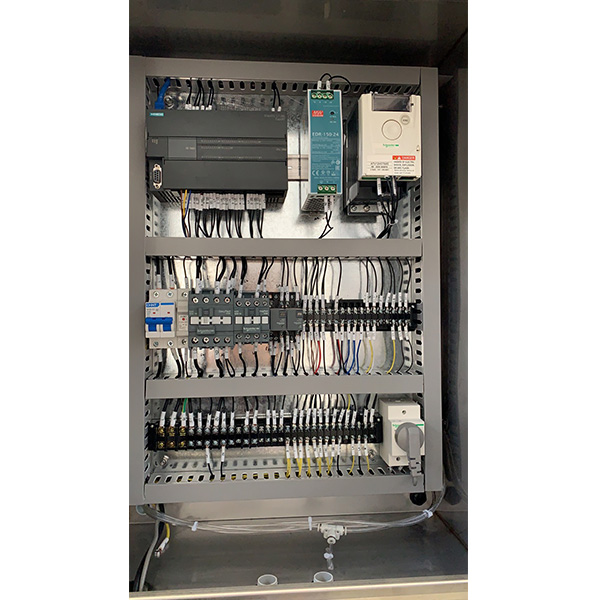

- No bottle, no filling, automatic PLC control.
- Filling nozzles are anti drops, silk, and auto cut viscous liquid.
- Perfect filling precision: Less than 0.5%.
- Special seals or hoses are adapted if the liquid are corrosive.
- Diving nozzles for bottom up filling of foaming products if need.
