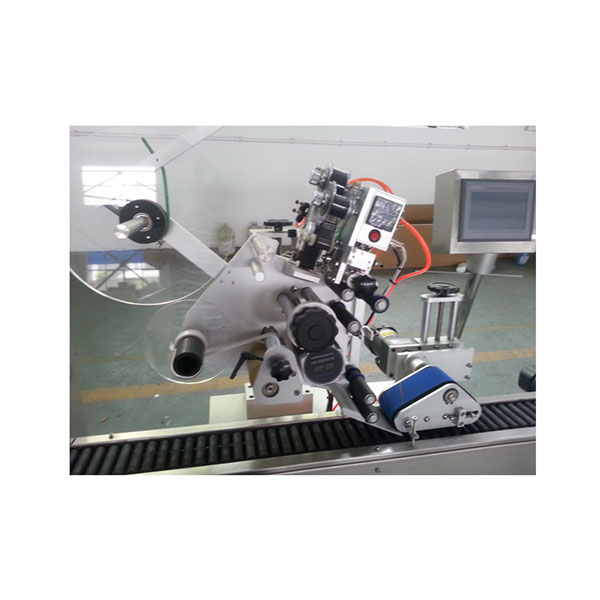

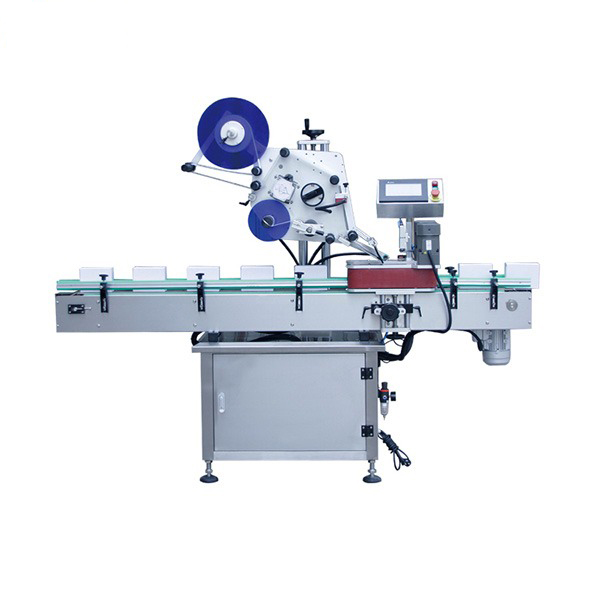

Automatic Top Side Sticker Labeling Machine

Top side sticker labeling machine is produced by VKPAK Which can label the Top carton, Tin Cans , Pouch and all kinds of plane surface.

The label is the sticker/self-adheisve label. Surface labeling machine.

Top Side Sticker Labeling Machine is is suitable for all kinds of objects with plane surface, such as boxes, bottles, cans, etc. Widely used in cosmetic, drinks, chemical, medical, food industry, stationery CD, various oil, etc, Top labeling machine plan surface.

  • PLC and Touch control system
  • Main body of machine is 304SS
  • We adopt the servo motor and sensor (Made in Japan) in order to assure great label exact
  • Fixing coding machine to print the date information on label
  • No object , No Labelling


The top labeling machine is carefully designed to meet all the performance requirements and meets the performance requirements. The top labeler Parts are made from high grade raw materials including a sturdy stainless steel frame for strong support of the equipment. It works on various types packaging material therefore ideal for most industries including cosmetic packaging, health care products, retail food, baked goods and even beverages.

The top labeling equipment is easy to set up and run, as well as integrate into other production lines. In summary, the equipment is dependable, consistent and versatile in usage. It also has good energy saving features.

Warranty: 1 Year
Packaging Type: Case
Packaging Material: Wood
Type: Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK Automatic Top label applicator
Voltage: 220V 50/60HZ
Application: Food, Beverage, Commodity, Medical, Chemical
Weight: 200kg
Automatic Grade: Automatic
Certification: ISO9001
Driven Type: Electric
Dimension(L*W*H): 1800mm*1000mm*1300mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Product name: Automatic Top label applicator
Function: sticker label on the bottle
Labeling speed: 20-100bottle /min
Motor: servo motor
Material: Stainless Steel
warranty: 1 year
labeling accuracy: 1mm
Service: 24/7 Technical Support
packing: Long Distance Wooden Case

Technical Parameter

NameTop Side Sticker Labeling Machine
Labeling Speed20-200pcs/min(Depending on label length and bottle thickness)
Height of Object30-200mm
Thickness of Object20-200mm
Height of Label15-110mm
Length of Label25-300mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter350mm
Accuracy of Labeling±0.8mm
Power Supply220V 50/60HZ 0.75KW
Gas Consumption of Printer5Kg/cm^2 (if add coding machine)
Size of Labeling Machine1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine250Kg

Top side labeling machine is widely used in logistics, track and trace, food, and pharmaceutical industries for labeling on primary, secondary, tertiary packaging. Top side labeling machine can integrate with printing engine and corresponding data control program, to achieve on-line data printing, track and trace application and anti-counterfeiting function.

Configuration List

1Touch ScreenSiemens1German
2Frequency ConverterDelta1Taiwan
3Step motor and DriverFenghua1China
4Label sensorLEUZE1Germany
5Bottle sensorKeyence1Japan
6Machine Frame304 Stainless steel1China

Main Features:

  • The label head is on the top of conveyor
  • Electrical parts is made in Japan or Europe
  • Without container, without labeling
  • Suitable for the sticker/adheisve label

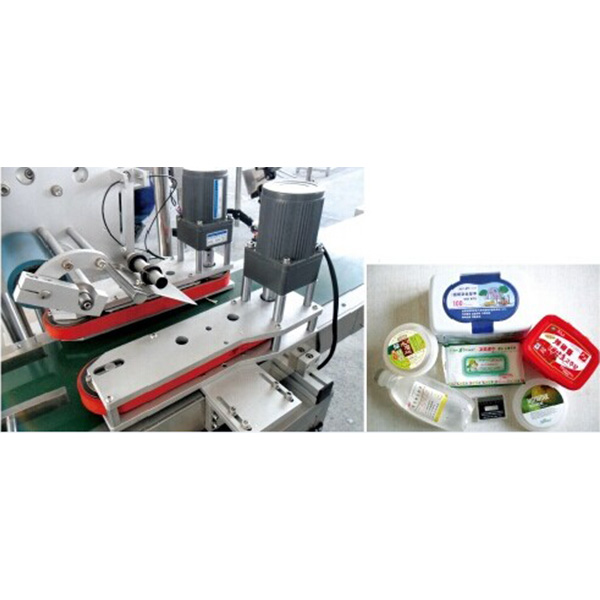

  • Label on the carton , pouch, Can and kinds of surface container

Automatic top side sticker labelling machine is suitable to apply self-adhesive labels flat surfaces like boxes, cosmetics, packets, Pouch and bags, books, envelopes, cartons, food trays, Bottle , containers, blisters etc.This pressure sensitive top labeling machine can be integrated onto existing production lines or be fed manually, top labeling sticker machines are used many labeling application like labeling equipments , anti-counterfeit/product safety measures application and bar code application. Sample products labeled with these units include baby wipes labeling machine, batteries labelling machine, dairy products labelling machine, first aid kits box labelling machine, herbs labelling machine, manuals label applicator, bakery products labeling machine, medical instrument labeling machine, machine parts label applicators, confectionery labeling machine and many others.
